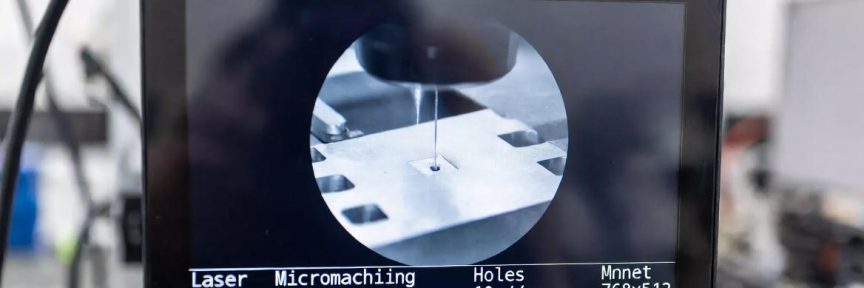

We're integrating a video microscope into our laser micromachining system. What are the primary engineering challenges we should anticipate during this integration process?
Excellent question! Integrating vision systems with laser micromachining presents several interconnected challenges that require careful consideration. Specifically, you'll encounter issues with working distance optimization, optical alignment precision, thermal management, and overall system stability. Let me guide you through these critical aspects systematically.
First, let's address working distance requirements. We need sufficient clearance for easy workpiece loading while maintaining optimal image quality. How do we balance these competing needs effectively?
Optimizing Working Distance for Laser Vision Systems
You've identified a fundamental trade-off in optical engineering! Consequently, we need strategic solutions. For instance, specialized long-working-distance objectives provide the necessary clearance without significant performance loss. Additionally, telecentric lenses maintain consistent magnification and minimal distortion across varying distances. Therefore, the key lies in selecting optics specifically designed for extended working applications while preserving resolution.
Alignment seems particularly challenging. How do we ensure the camera's focal plane precisely matches the laser's focus point, especially considering different wavelength requirements?
Precision Focus Alignment Strategies
This represents one of the most technically demanding aspects of integration. Primarily, two significant issues emerge: focus plane mismatch due to specialized laser coatings, and chromatic aberration from different wavelength requirements. To address these challenges, we implement achromatic lenses with multi-layer coatings to minimize color distortion. Furthermore, strategic use of beam splitters separates laser and visible light paths, allowing independent optimization. As a result, each optical path achieves its maximum performance potential.
Our application requires ultrafast lasers with substantial peak power. How does this high-power requirement influence the vision system design and optical configuration?
High-Power Laser Optical Considerations
High peak power introduces critical design constraints that fundamentally alter the optical approach. Specifically, it necessitates an all-mirror configuration to prevent lens damage from intense energy concentrations. Consequently, this eliminates coaxial vision setups where laser and imaging share the same path. Instead, we transition to precisely engineered off-axis configurations. These incorporate high-reflectivity mirrors and sophisticated beam splitters to manage energy distribution effectively. Although more complex, this approach ensures both system safety and optical performance.
Thermal management and vibration control concern me significantly. How do these factors impact both processing quality and imaging stability in integrated systems?
Comprehensive Thermal and Vibration Solutions
Your concerns are absolutely valid, as these factors directly determine system reliability. For thermal management, we employ heat-resistant optical materials combined with active cooling systems to maintain stable operating temperatures. Meanwhile, vibration control requires a multi-faceted approach including advanced dampening mounts and rigid mechanical structures. Moreover, high-performance vacuum chucks or active anti-vibration platforms ensure workpiece stability during precision operations. Ultimately, these measures work together to preserve both processing accuracy and image clarity.
This comprehensive overview is incredibly valuable! It appears successful integration requires balancing multiple competing parameters across optical, mechanical, and thermal domains simultaneously.
Precisely! The fundamental insight is recognizing these as interconnected challenges rather than isolated problems. Consequently, modifications in one domain inevitably affect others. Therefore, the most successful implementations adopt holistic design methodologies from inception. Rather than applying retroactive fixes, we integrate all considerations during initial planning. This systematic approach ensures optimal compromises that align with your specific application requirements and performance targets.
