We're designing a laser micromachining system that requires micron-level positioning accuracy. What motion control technologies should we consider for precise laser beam delivery?

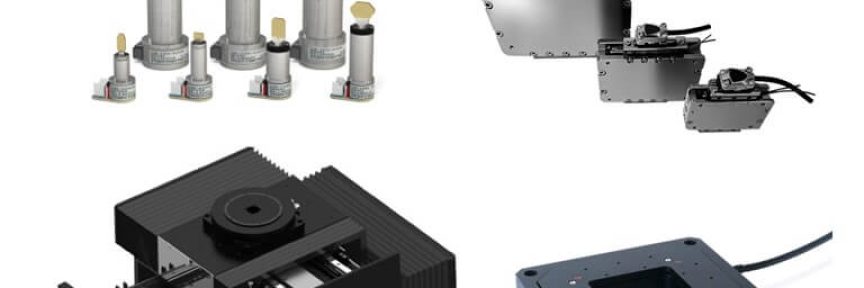

For micron-level laser positioning, four primary technologies offer distinct advantages: five-phase stepper motors, voice coil actuators, piezoelectric stages, and adaptive optics with FSM/PSD systems. Each addresses specific requirements in precision, speed, and dynamic response for micromachining applications.
Let's start with five-phase stepper motors. What are their advantages for laser positioning systems, and what limitations should we anticipate?
Five-Phase Stepper Motors: Balanced Precision
Five-phase steppers provide excellent positioning resolution with 0.72° step angles, achieving micron-level accuracy through microstepping technology. Their primary advantage lies in high holding torque and excellent repeatability without requiring position feedback. However, they exhibit relatively slow acceleration rates and potential resonance issues at certain speeds. For laser applications, they excel in point-to-point positioning tasks but struggle with high-speed continuous path following. Typical applications include laser drilling machines and semiconductor wafer processing where moderate speed and high precision are required.
How do voice coil actuators compare for dynamic laser positioning applications requiring both speed and precision?
Voice Coil Actuators: Dynamic Performance
Voice coil actuators offer exceptional dynamic response with acceleration rates exceeding 100 G and sub-micron positioning capability. Their direct-drive design eliminates mechanical transmission elements, providing smooth motion without backlash or friction. Consequently, they achieve settling times under 10 milliseconds for precise laser positioning. The primary limitation involves limited travel range, typically under 50 mm, making them ideal for fine adjustment applications. Laser systems benefit from their capabilities in applications like optical alignment, laser trimming, and high-speed scanning where rapid repositioning is critical.
What about piezoelectric stages? Where do they fit in the precision motion landscape for laser micromachining?
Piezoelectric Stages: Ultimate Precision
Piezoelectric platforms deliver nanometer-level resolution with virtually infinite stiffness, making them ideal for ultra-precise laser positioning. Their solid-state construction provides exceptional stability and rapid response times, typically achieving sub-millisecond step responses. However, they exhibit inherent hysteresis and require closed-loop control for absolute positioning accuracy. Additionally, travel range remains limited to several hundred micrometers. These stages excel in applications demanding extreme precision, such as laser direct imaging, maskless lithography, and sub-micron feature machining where thermal stability and vibration immunity are paramount.
We've heard about adaptive optics using FSM and PSD for dynamic compensation. How do these systems enhance laser positioning accuracy?
Adaptive Optics: Real-Time Correction
Fast Steering Mirrors (FSM) combined with Position Sensitive Detectors (PSD) create closed-loop systems that correct beam positioning errors in real-time. FSMs provide microsecond-level response for beam steering, while PSDs detect position deviations with sub-micron resolution. This combination compensates for mechanical vibrations, thermal drift, and atmospheric turbulence. Consequently, systems maintain beam positioning stability better than 50 nanometers under dynamic conditions. Laser micromachining applications particularly benefit in environments with external disturbances, long working distances, or when processing non-planar surfaces where traditional stage positioning proves insufficient.
What's the primary development challenge for system integrators when implementing these precision motion technologies?
Integration Challenge: Real-Time Motion Compensation
The most critical development task involves creating sophisticated firmware and software for real-time motion compensation. System integrators must develop algorithms that synchronize multiple motion axes while compensating for mechanical imperfections, thermal effects, and external vibrations. This requires implementing predictive control algorithms, adaptive filtering, and closed-loop feedback systems that operate at microsecond latencies. Successful integration demands expertise in real-time operating systems, motion control theory, and hardware-software co-design to achieve the sub-micron positioning stability required for advanced laser micromachining applications.
How should we approach selecting the right technology combination for our specific laser micromachining requirements?
Strategic Technology Selection Framework
Optimal selection depends on three key parameters: required precision, operational speed, and environmental conditions. For general micromachining with moderate speeds, five-phase steppers provide cost-effective solutions. High-speed applications benefit from voice coil actuators or FSMs with PSD feedback. Extreme precision requirements necessitate piezoelectric stages, while vibration-prone environments demand adaptive optical compensation. Many advanced systems employ hybrid approaches, combining coarse positioning stages with fine-adjustment actuators. For instance, stepper motors handle long travel ranges while piezoelectric elements or FSMs provide final positioning accuracy, creating comprehensive motion solutions for diverse laser processing challenges.
This comprehensive comparison is extremely helpful. Are there emerging technologies we should monitor for future laser positioning applications?
Future Developments in Precision Motion
Several emerging technologies show promise for next-generation laser positioning. Magnetic levitation stages eliminate mechanical contact entirely, achieving nanometer precision with unlimited travel. Additionally, multi-degree-of-freedom piezoelectric actuators provide complex motion profiles in compact packages. Furthermore, artificial intelligence-enhanced adaptive optics systems learn and predict environmental disturbances for proactive compensation. Meanwhile, integrated metrology systems incorporating inline interferometry provide real-time position verification without external sensors. These advancements will enable even higher precision laser processing with improved throughput and reliability for demanding micromachining applications across semiconductor, medical device, and aerospace industries.
